Laser Printers

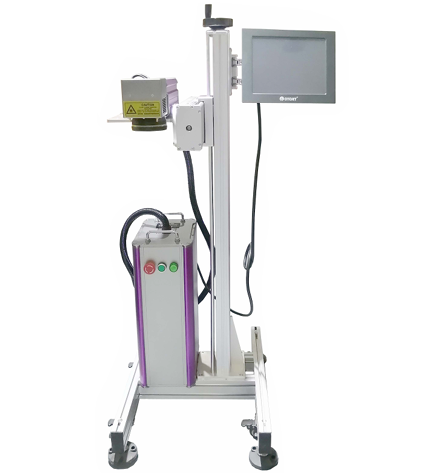

CYCJET Fiber(L) Garner F
Garner Laser as a sub-brand belongs to CYCJET , that developed by CYC with latest laser technology in the world, and it’s latest application oncable, pipe, metal, paper based on perfect marking result, designed portable, well compact & integration to suit for fast & long time printing on different products & materials, meet 24hours continuous working. Smart & simple operation to meet different line speed and materials
Printing specifications
| ITEM | Garner F20L/F30L/F50L/F100L |
|---|---|
| Frame Material | ALUM. |
| Laser Device | Fiber Laser |
| Power | ≥20W/30W/50W/100W |
| Laser Wavelength | 1064nm |
| Galvanometer Deflection | High Precision dual dimensional scanning system |
| Marking Speed | ≤10000mm/s |
| Master Control | Highly integrated board with 10 inch Color Touch screen |
| Operating System | LINUX Software |
| Cooling | Air Cooling |
| Focus Distance | Focus 155mm |
| Marking Line Type | Dot matrix, bold, vector all in one |
| Minimum Line Width | 0.012mm |
| Repeatability Accurate Positioning | 0.003mm |
| Marking Area | Standard 110mm×110mm |
| Marking Height | Standard Character height 110mm |
| Marking Length | Unlimited |

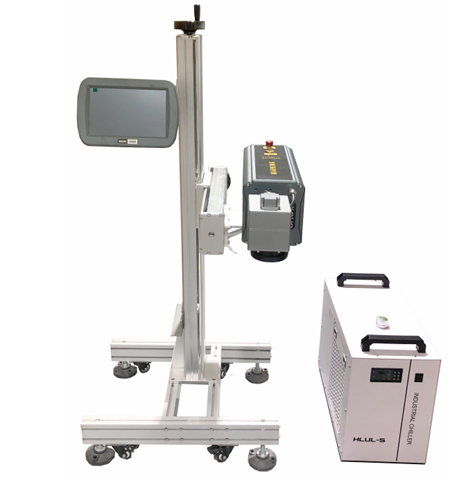

CYCJET Fiber(L) Garner U
Garner Laser as a sub-brand belongs to CYCJET , that developed by CYC with latest laser technology in the world, and it’s latest application oncable, pipe, metal, paper based on perfect marking result, designed portable, well compact & integration to suit for fast & long time printing on different products & materials, meet 24hours continuous working. Smart & simple operation to meet different line speed and materials
Printing specifications
| ITEM | Garner U3L/U5L/U10L |
|---|---|
| Machine Body | Complete Aluminum Structure |
| Output Power | ≥3W/5W/10W |
| Laser Wave | 355nm |
| Laser Wavelength | 1064nm |
| Scanning system | High precision double scanning system |
| Marking Speed | ≤10000mm/s |
| Control | 10'' Color touch screen |
| Operating System | LINUX Software |
| Cooling | Water Cooling |
| focusing lens | Focus distance 155mm |
| Marking Line type | Dot-matrix, Vector font can be printing |
| Min Line size | 0.01mm |
| Repeated positioning accuracy | 0.003mm |
| Marking Area | 110mm×110mm |
| Positioning | Red light positioning and automatic foc |
| Line Printing | Multi-line within marking size |
| Production line Speed | Adjustment depend on different materials |
| Font | English, logo, number, date, time, barcode etc... |

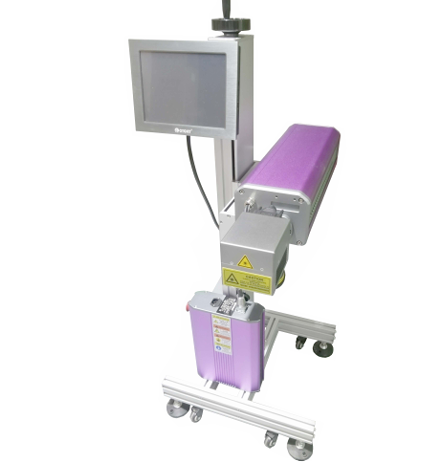

CYCJET Fiber(L) Garner C
Garner Laser as a sub-brand belongs to CYCJET , that developed by CYC with latest laser technology in the world, and it’s latest application oncable, pipe, metal, paper based on perfect marking result, designed portable, well compact & integration to suit for fast & long time printing on different products & materials, meet 24hours continuous working. Smart & simple operation to meet different line speed and materials
Printing specifications
| ITEM | Garner C30L/C60L |
|---|---|
| Frame Material | ALUM. |
| Laser Device | Co2 Laser |
| Power | ≥30W/60W |
| Laser Wavelength | 930nm/1020nm/1064nm |
| Galvanometer Deflection | High Precision dual dimensional scanning system |
| Marking Speed | ≤10000mm/s |
| Master Control | 10 inch Color Touch screen |
| Operating System | LINUX Software |
| Cooling | Air Cooling System |
| Focus Distance | Focus 145mm |
| Marking Line Type | Dot matrix, bold, vector all in one(both dot matrix and vector) |
| Minimum Line Width | 0.015mm |
| Repeatability Accurate Positioning | 0.005mm |
| Marking Area | Standard 110mm×110mm |
| Marking Area | Standard 110mm×110mm |
| Marking height | Standard Character height 110mm |
| Marking Length | Unlimited |
